SPEC

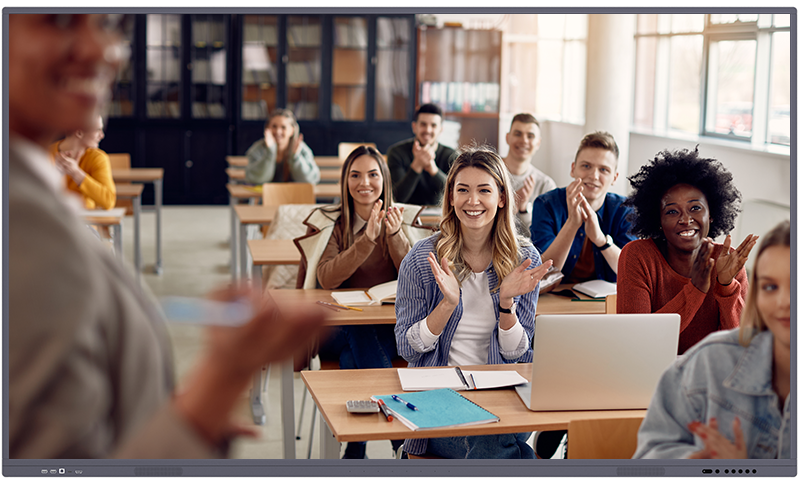

86W61B Interactive Flat Panel
  •
  •   Model 86W61B
  •   Panel size 86"
  • Display parameters Backlight category DLED
  •   Optimum resolution 3840*2160@60Hz
  •   Viewing angle H:178°/V:178°
  •   Brightness 400cd/m²
  •   Contrast ratio 1200:1
  •   Response time 8ms
  •   Color 1.07B
  • Power waste Power ≤440W
  •   Standby Power Consumption ≤0.5W
  •   Operating voltage 100V-240VAC 50/60Hz
  • Specifications Bare dimension 1967.9mm*87.1mm*1170.2mm
  •   Packing dimension 2140mm*280mm*1340mm
  • Chip scheme    MSD8386
  • Input interface HDMI 3
  •   VGA 1
  •   RS232 1
  •   Y/PB/PR 1(3 IN 1)
  •   PC-AUDIO 1
  •   TOUCH-USB 1
  •   Android USB 2
  •   PUBLIC-USB 2
  •   MIC 1
  •   LAN 2
  •   OPS 1
  •   DP 1
  •   Type-C USB 1
  • Output interface EARPHONE OUT 1
  •   AV OUT(3 IN 1) 1
  •   HDMI 1
  •   SPDIF 1
  •   Audio OUT 1
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
