SPEC

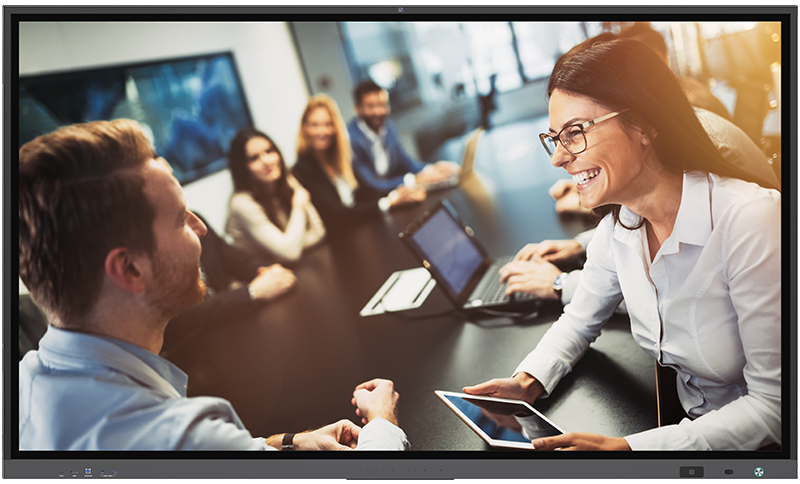

86W62B Interactive Flat Panel
  •
  •   Model 86W62B
  •   Panel size 86"
  • Display parameters Backlight category DLED
  •   Optimum resolution 3840*2160@60Hz
  •   Viewing angle H:178°/V:178°
  •   Brightness 350-400cd/m²
  •   Contrast ratio 1200:1
  •   Response time 8ms
  •   Color 1.07B
  • Power waste Power
  •   Standby Power Consumption ≤0.5W
  •   Operating voltage 100V-240VAC 50/60Hz
  •   Speaker
  • Specifications Bare dimension 1967.1mm*87.5mm*1160.9mm
  •   Packing dimension 2140mm*1340mm*280mm
  •   N.W.
  •   G.W.
  • Chip scheme    MSD8386
  • Input interface HDMI 3
  •   HDMI-OPS
  •   HDMI(FRONT)
  •   HDMI(BACK)
  •   VGA 1
  •   AV-IN
  •   AV 1
  •   RS232 1
  •   RS232(DB9)
  •   R-IN
  •   L-IN
  •   Y/PB/PR 1
  •   VIDEO-IN
  •   PC-AUDIO 1
  •   AUDIO
  •   PUBLIC-USB 1
  •   Android USB
  •   PC/Android USB
  •   PC-USB(BACK)
  •   USB
  •   MEDIA-USB
  •   TOUCH-USB 2
  •   PC-USB
  •   MEDIA-USB(BACK)
  •   OPS PC-USB 1
  •   TV-USB
  •   PC-USB(FRONT)
  •   TOUCH-USB(BACK)
  •   MEDIA-USB(FRONT)
  •   TOUCH-USB(FRONT)
  •   MIC
  •   TV-MIC
  •   LAN 2
  •   OPS 1
  •   DP 1
  •   COMPONENT
  •   TV 1
  •   OPS-C
  •   TYPE-C 1
  •   Type-C USB
  • Output interface EARPHONE
  •   EARPHONE OUT
  •   AV OUT(3 IN 1)
  •   AV 1
  •   HDMI 1
  •   RS232 IN
  •   RS232
  •   COAX
  •   SPDIF 1
  •   AUDIO 1
  •   Audio OUT
  •   TV-AUDIO
  • Accessories Power cable 1
  •   HDMI cable 1
  •   USB Touch cable 1
  •   cable 1
  •   Touch pen 2
  •   Remote control 1
  •   Specification 1
  •   Wall mount 1
  •   Movable stand(Optional) 1
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
